SR Cables

Features SR Cables

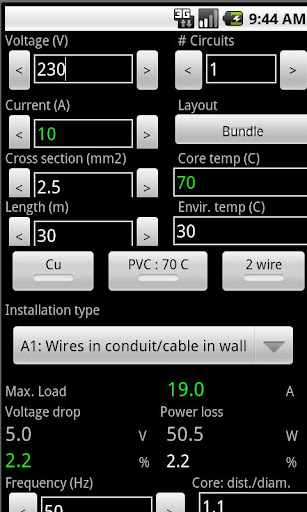

Quick calculation of allowed cable load and loss in cable.Calculates maximum allowed load with compensation for environment temperatures between 10 - 60 °C.
Note that if exceediing 90% load on 25+ mm2 you should consult the cable manufactorers datasheets.Calculates voltage drop with compensation for core temperatures between 0 - 70/90 °C.

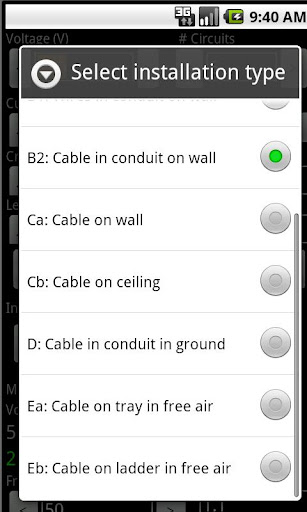

Compensation for multiple circuits.Indicates when voltage drop exceeds 3% (yellow) 4% (red) or when max load is exceeded.Calulates Power loss in cable.https://play.google.com/store/apps/details?id=net.roensberg.cablesBased on IEC 364 TablesCable types according to IEC tables 52-C1/C2/C3/C4 and C9/C10/C11/C12:"Copper/aluminium", "PVC 70° C / XLPE 90° C" and "2 wire" / 3-phase" with quick toogle between types.Installation forms according IEC table 52-B1:A1: Wires in conduit in isolated wallA2: Cable in conduit in isolated wallB1: Wires in conduit on wooden wallB2: Cable in conduit on wooden wallC: Cable on wooden wallD: Cable in conduit in groundE: Cable in free airi.e normal installations excluding single wires in free airQuick select of normal used voltages: 5, 12, 24, 48, 48, 60, 110, 230, 400 and 600 VQuick select of normal cross sections: 0.75, 1, 1,5, 2,5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300 mm2You can try the free version before you buy.
It has the same functions, except installation type can not be changed, and no compensation for multiple circuits.This app currently support english and danish.If you want the app in your own language then please mail me the translation of the texts.
